Our Capabilities
From vibration to thermal shock, we deliver confidence. Your battery is at the heart of safety, performance, and reliability of the end product; we offer precision testing, expert support and detailed reporting, to ensure confidence and trust in your product.
Our Equipment
DATASYST testing equipment can perform mechanical testing of products and components of varied sizes, weights and testing profiles. We can evaluate products and designs for how well they hold up to vibration, mechanical shock and impact, load and fatigue, strain and stress, seismic impacts, extreme temperatures, humidity, altitude, thermal shock, and in combined environments.
Our sophisticated testing facility also allows customized product testing to unique needs to produce solution-focused results.

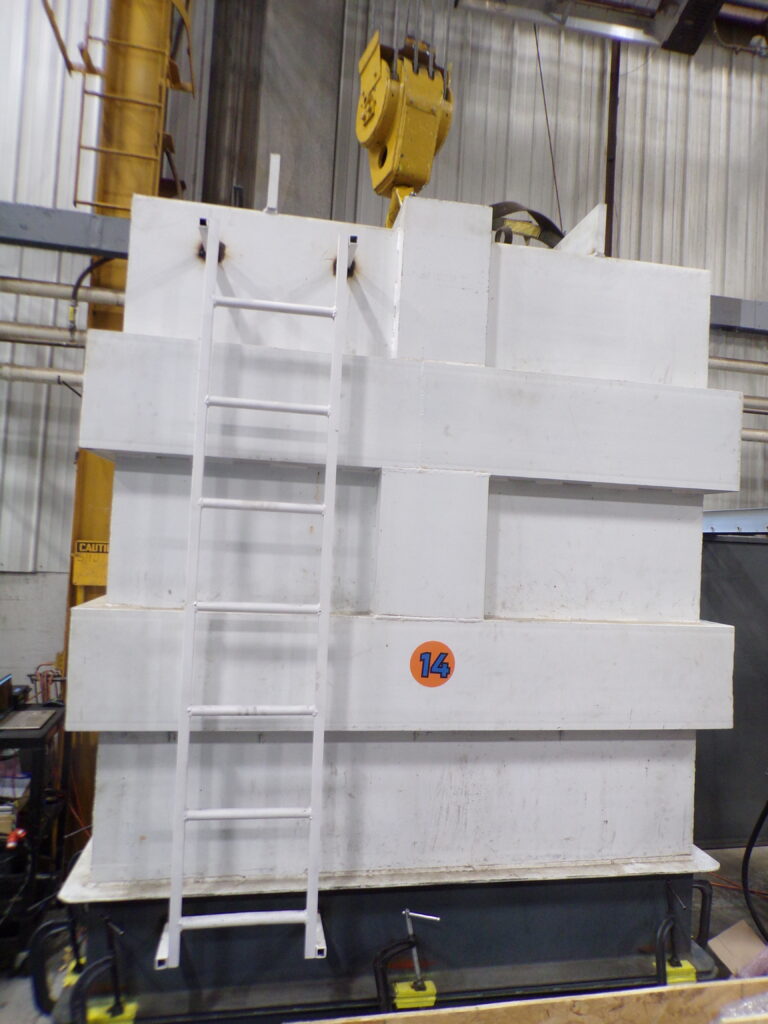

Temperature and Temperature / Humidity
- 35 environmental chambers ranging in size from bench-top to drive-in
- Temperature capabilities range from – 73 C (- 99.4 F) to + 176 C (+ 348.8 F) with and without relative humidity up to 95%
- Drive-in Chamber: 18.5 feet by 75 feet
- 3 Walk-in chambers: 5′ x 7′ temp w/RH; 8.5′ x 19.5′ temp w/RH; 12′ x 15.5′ temp only.
- 4 vertical agree chambers
- 2 horizontal agree chambers
- Remaining chambers range in size from 1 ft³ to 32 ft³
Data Acquisition
- We employ advanced data acquisition systems tailored for precise
measurements across a range of applications. - For standard data acquisition, we utilize systems designed to
capture low-frequency signals over extended periods, with sampling rates
typically set at one sample per second but capable of reaching up to 2,000
samples per second when needed. For high-speed data acquisition, our systems can achieve sampling rates of up to 10,000 samples per second per channel, enabling the detailed capture of dynamic events. This capability enhances our ability to perform comprehensive testing, delivering precise and reliable data to ensure the highest quality outcomes for our clients.
Electrodynamic Vibration Systems
- 11 electrodynamic vibration systems ranging from 3,000 pounds force to 24,000 pounds force
- All systems are 2-inch stroke except for the 24,000-pound force system, which is 3-inch stroke
- Vertical head expanders up to 6-foot square
We can fabricate fixtures to go beyond the defined table footprint depending on the total moving mass and required test profile.
Static / Ultimate Load Test Equiment
- Enerpac hydraulic equipment for static and or ultimate load testing up to 250,000 pounds force and up to 12-inches of stroke
High Level Shock

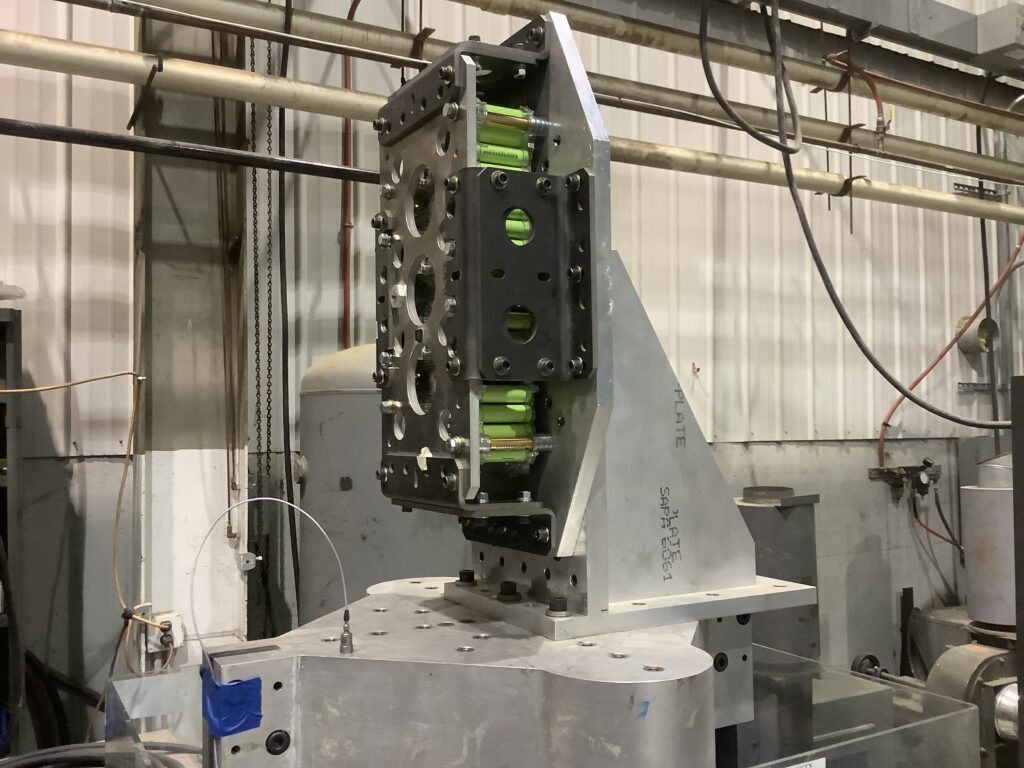

- MRad Model 1616
Drop Testers
- Lansmont package drop tester
- 35-foot drop tower
UV & Weathering

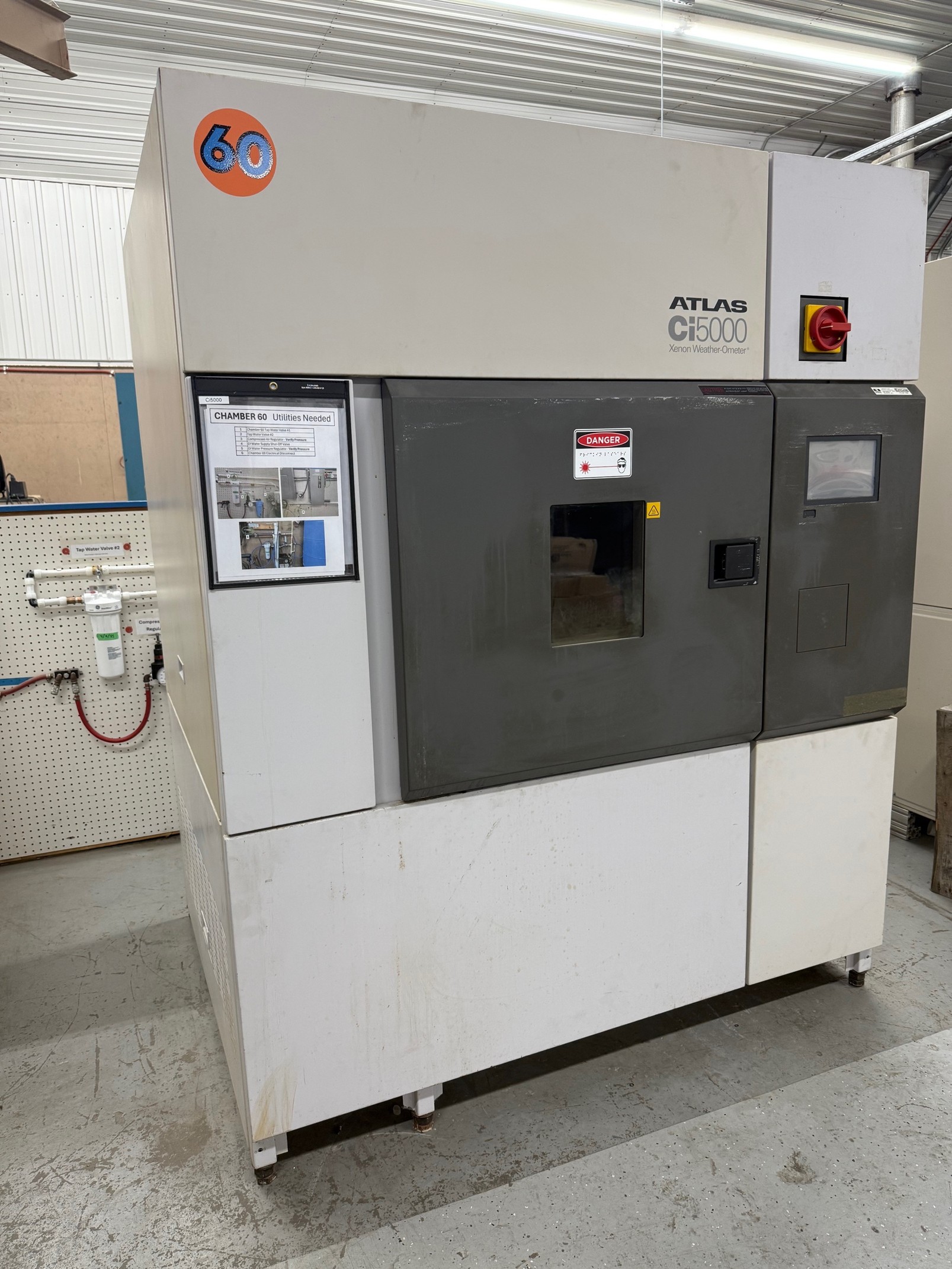

- Atlas CI5000 Xenon Chamber
- SAE J1960 Testing

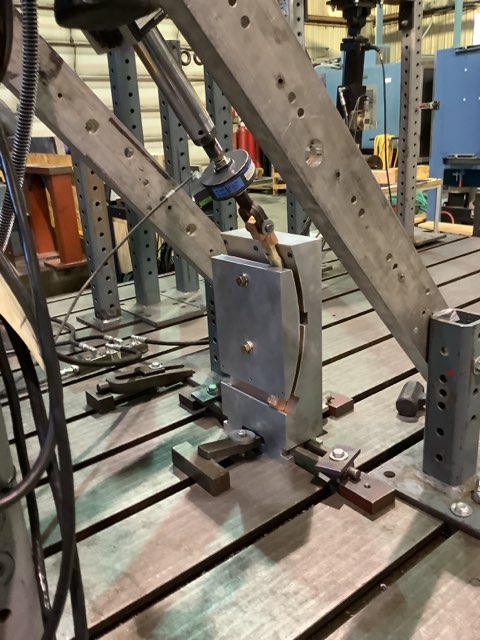

Servo Hydraulic—Fatigue Test Equipment
- Servo-hydraulic equipment ranging from 1-inch stroke to 37-inch stroke and 1 kip to 28 kip
- Mix of MTS and Instron equipment
- MTS 407 controllers
- MTS Flex test for multi-channel control
Dust Chambers
- 3 dust chambers

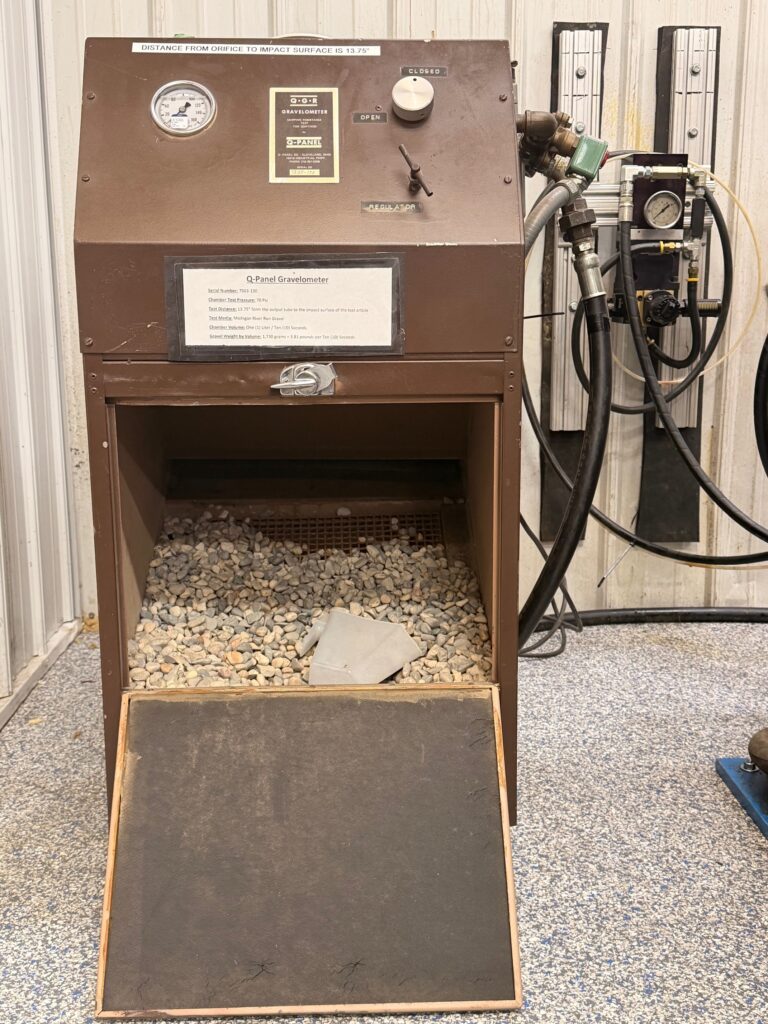

Gravelometer
- SAE J 400 chamber
