Vibration Testing
DATASYST has the onsite capabilities to conduct on-time, quality vibration and mechanical testing on products and components of various sizes, weights and testing profiles. Covering industries such as medical, automotive, telecommunications, manufacturing, electrical and military.
Decades of experience combined with a wide range of capabilities and equipment allow us to offer a diverse portfolio of vibration and mechanical testing services to simulate handling, shipping and daily use environments.
Determining where, when and how a unit under test (UUT) or product responds to vibratory conditions provides you with the advantage of determining the effectiveness of a given design and its ability to tolerate its intended environment.
Capabilities & Equipment
Our vibration testing capabilities evaluate how components respond to real-world conditions in their expected environments.

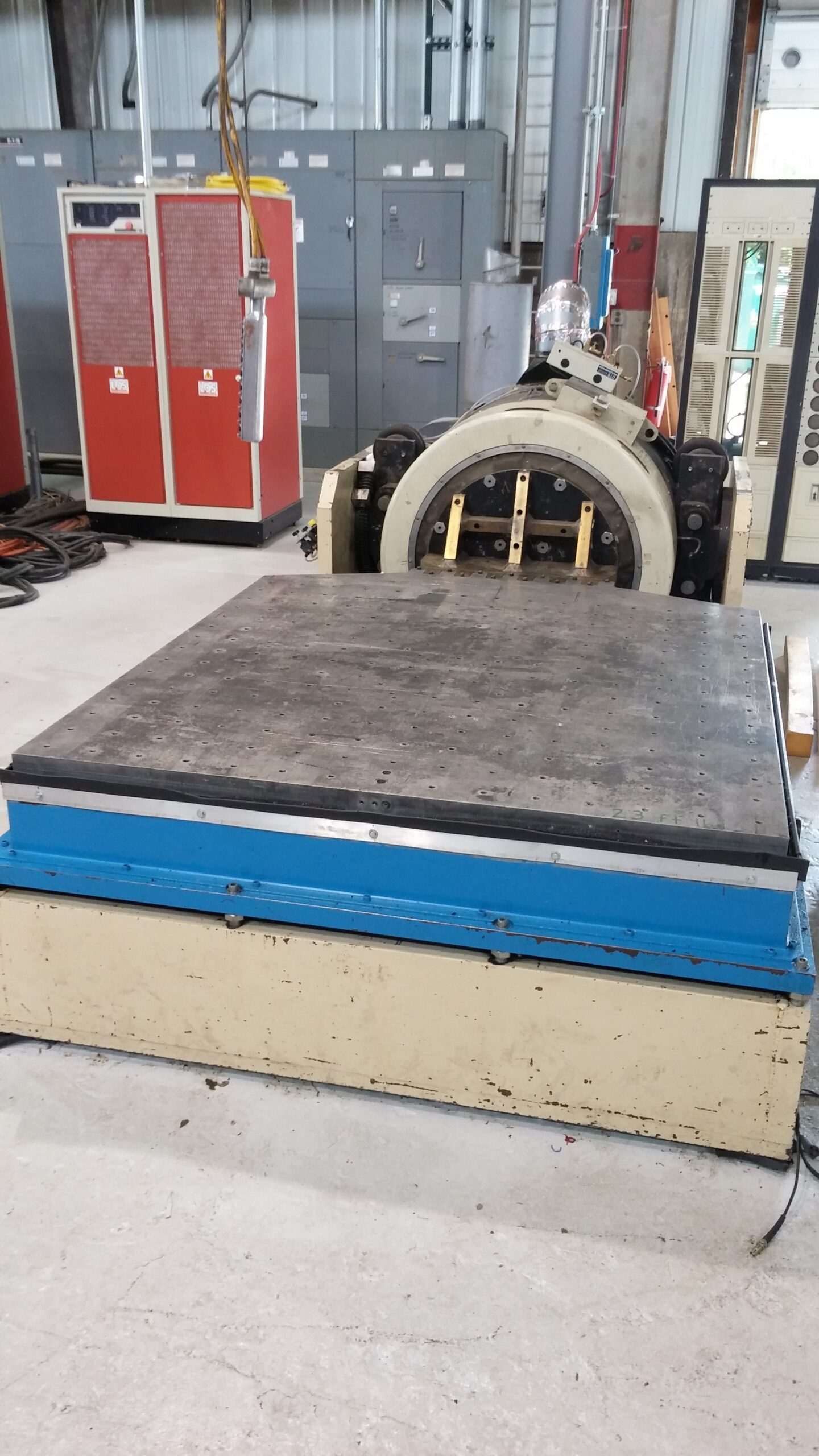

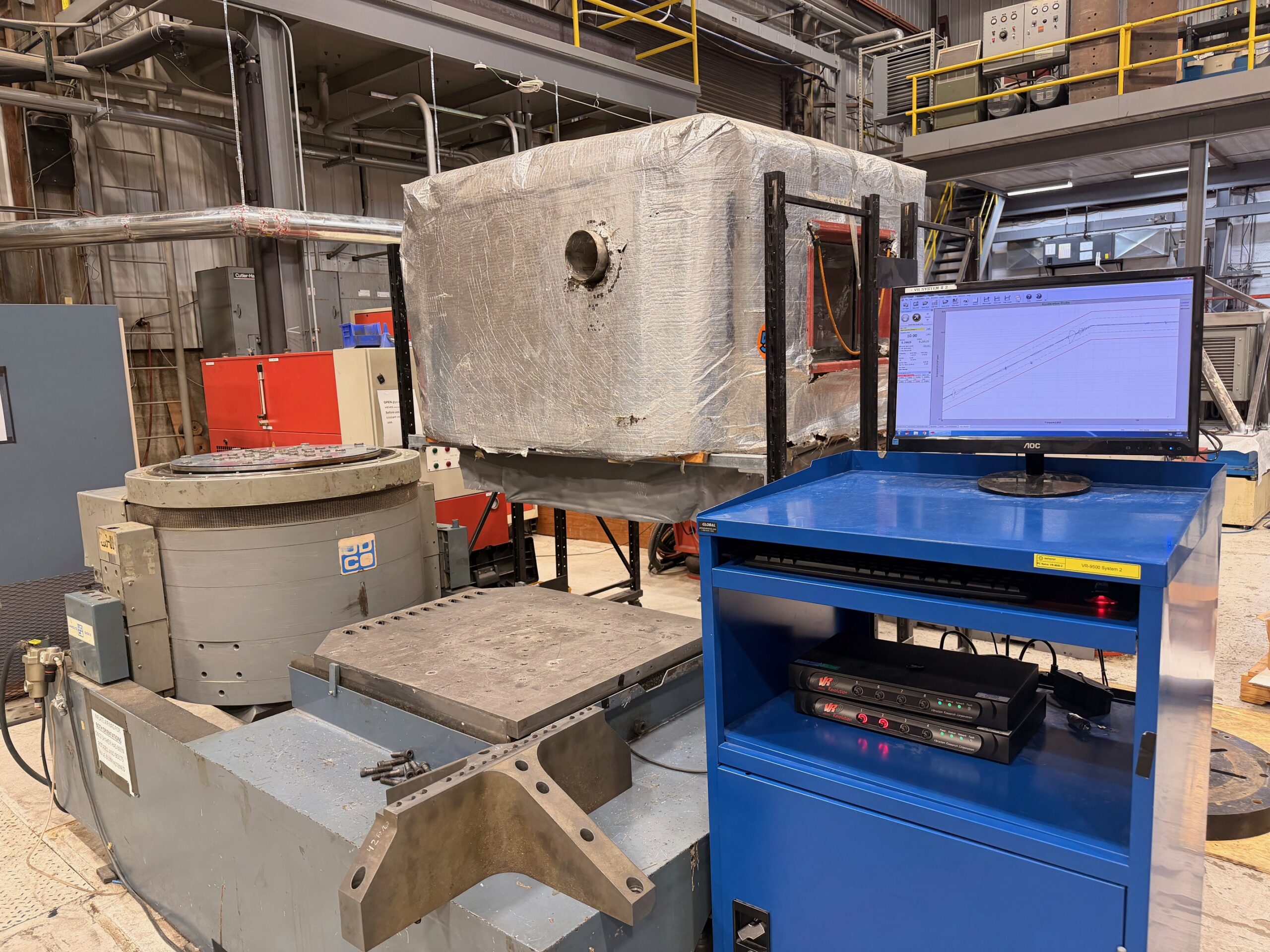

- 11 Electrodynamic Vibration Systemsranging from 3,000pounds force to 24,000pouinds force.
- All systems are two-inch stroke, except for the 24,000pound force which is a three-inch stroke.
- Vertical head expanders up to six foot-square.
- Horizontal slip plates up to five foot-square.
- Fixturing can be fabricated to go beyond the defined table foot print depending on the total moving mass and required test profile.
Test Standards & Specifications
DATASYST tests to a variety of standards and specifications, including:
- ISO
- Military Standard (MIL-STD-202, 810, 883, 1344)
- IEC (60068, 60529, 60601)
- GR-63-CORE
- RTCA/DO-160
- SAE (J1455, J1211)
- ISTA
- ETSI EN 300
- ISO/BS EN
